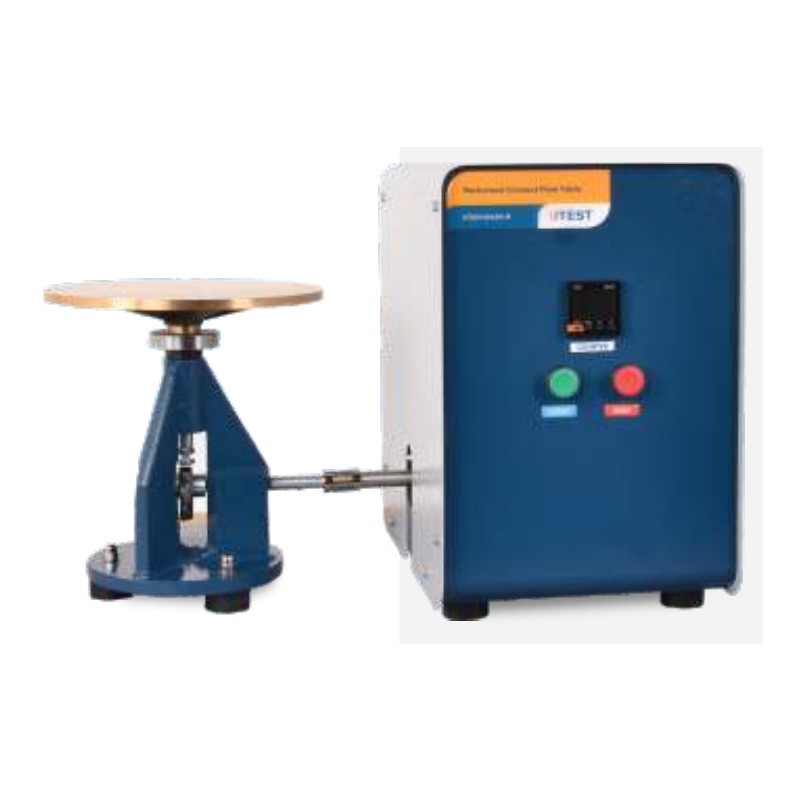

Cement Flow Table
UTEST (TURKEY) · CEMENT
Determines the consistency of mortar, lime and cement specimens. Available to ASTM and EN, in hand-operated and motorized versions; the motorized table turns at 1 rev/s and stops automatically at the preset number of drops. Supplied with a brass flow mould and tamper.
| Specification | ASTM (UTCM-0660A) | EN (UTCM-0660E) |
|---|---|---|
| Table diameter | 254 mm (brass) | 300 mm (stainless) |
| Cone (base/top/height) | 100/70/50 mm | 100/70/60 mm |
| Drop height | 12.7 mm | 10.0 mm |
| Motorized model | UTCM-0663A | UTCM-0663E |
Standards: ASTM C230; EN 459-2, 1015-3
Motorized model power: 180 W
Motorized model power: 180 W
